SSQ108

Overview

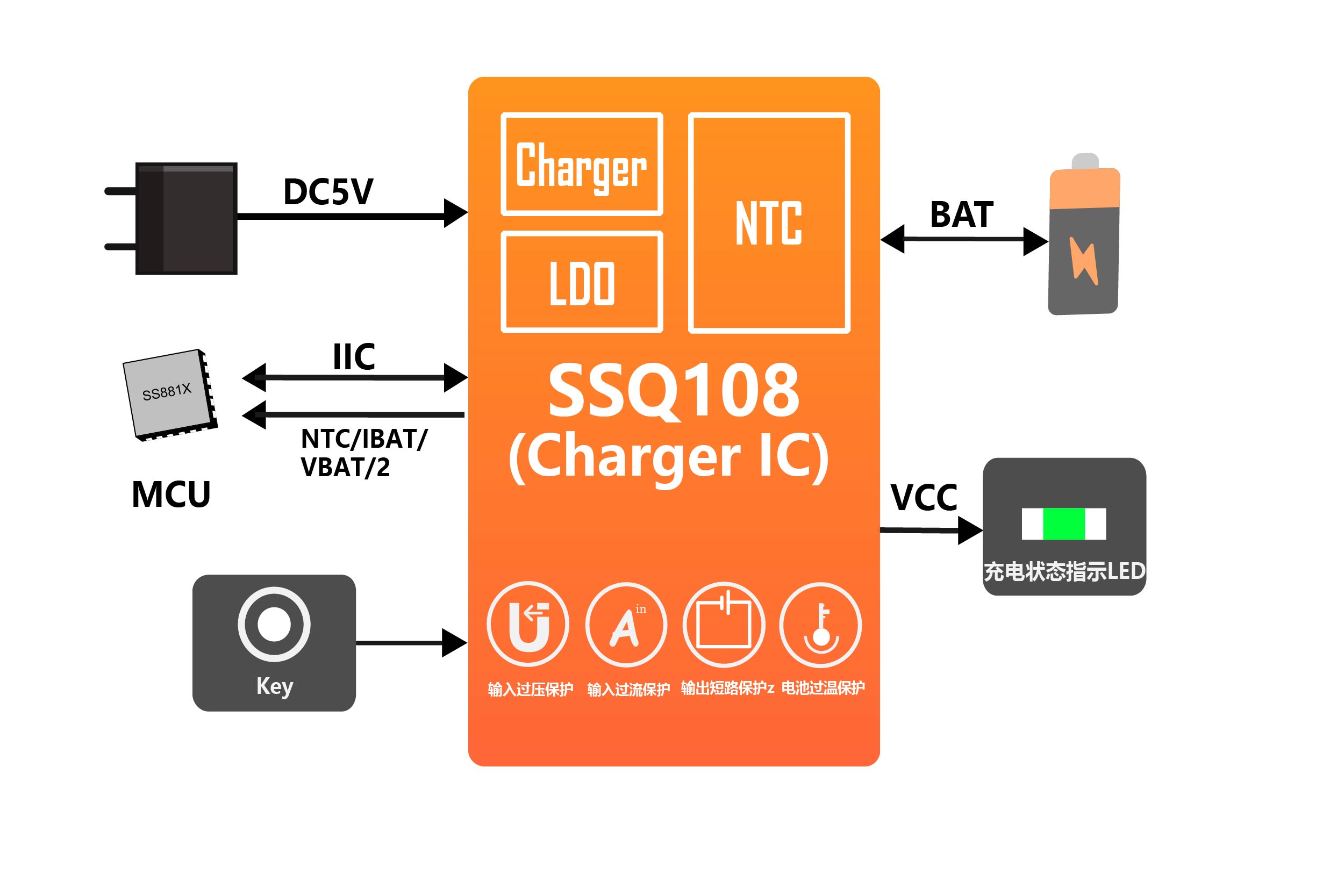

SSQ108 is a multifunctional switch Charger that supports IIC communication. The chip integrates an overvoltage protection circuit, with an input withstand voltage of up to 38V. SSQ108 has a built-in high-efficiency switch Charger module, and charge parameters can be flexibly adjusted through the IIC interface.

Features

◼   Integrated overvoltage and overcurrent protection circuits
◼   Input withstand voltage 38V
◼   Supports power supply path management
◼   Fully Integrated high-efficiency synchronous switch charger
      -    Charge current: 50mA~1.5A, adjustable via IIC. Step 50mA within 400mA, step 100mA above 400mA.
      -    Full charge detection
      -    Charge efficiency up to 96%
      -    Support trickle charge
      -    Support tiny cut-off current mode
◼   Support battery voltage, battery current, and NTC temperature detection
◼   Support IIC communication, maximum speed 200Kbps
◼   Standby power dissipation: 3μA
