SS86EX
Overview

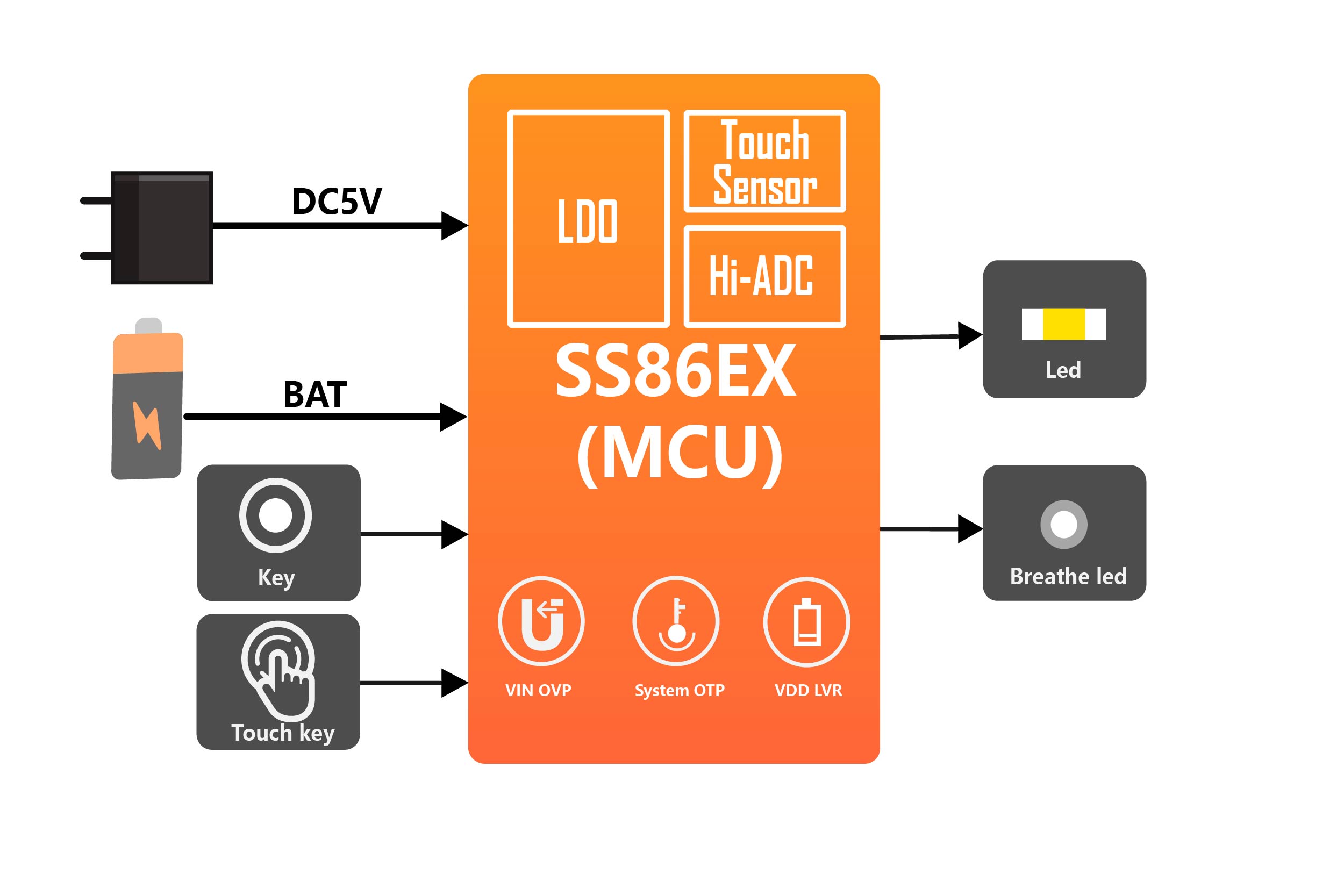

SS86EX is an 8-bit low-power microcontroller developed by Sinhmicro that integrates ADC and touch detection functions, with a clear MCU memory architecture, complete system-level control, and built-in rich interface functions, flexible configuration modes, and different low-power options. This product is mainly used in portable intelligent electronic devices that require charge and intelligent control, with a small chip area, bringing streamlined peripheral costs, superior overall performance, and flexible and convenient development.
Feature
◼ 8-bit enhanced MCU，8KB OTP，192B Data RAM
◼ Support adapter (DC 5V) and battery power supplies
◼ Integrated VIN overvoltage, VDD low power, system overtemperature protection
◼ 2 adjustable LDOs (VINLDO and BATLDO) with adjustable output
◼ Ultra-low power dissipation, sleep mode is 2μA
◼ 3* 16-bit timers with 7-channel PWM
◼ 13 bidirectional I/O ports, multi I/Os can output configurable protection level when ACMP triggers.
◼ Integrated 1 UART supports half-duplex communication
◼ 12-bit and 8-channel ADC, 1 NTC, 2* DCMP, 1 ACMP, 1* 4-channel Touch Sensor
Documents
| 标题 | 发布日期 | 尺寸 | 操作 |
|---|---|---|---|
| SS86EX-Datasheet_Brief(EN) | 2024-09-29 | 685.4 KB |
Tools & Software
Flash_tools工具| 标题 | 发布日期 | 尺寸 | 操作 |
|---|---|---|---|
| Flashtool_Setup_V5.4.13.exe | 2024-09-29 | 84.95 MB | |
| SINH-FlashTools-User_Guide | 2024-09-10 | 2.31 MB | |
| Changelog.txt | 2024-09-29 | 6.06 KB |
| 标题 | 发布日期 | 尺寸 | 操作 |
|---|---|---|---|
| Sinh51_Keil_V4.2.4.msi | 2024-09-06 | 20.85 MB | |
| Changelog.txt | 2024-09-06 | 9.38 KB | |
| Sinh51 Keil User Guide | 2020-12-29 | 1.54 MB |
Ordering Information
| Product Type | Package Type | Package Size |
|---|---|---|
| SS86E8KN1R8 | QFN16 | 3.00×3.00×0.75mm |
