SS880X
Overview

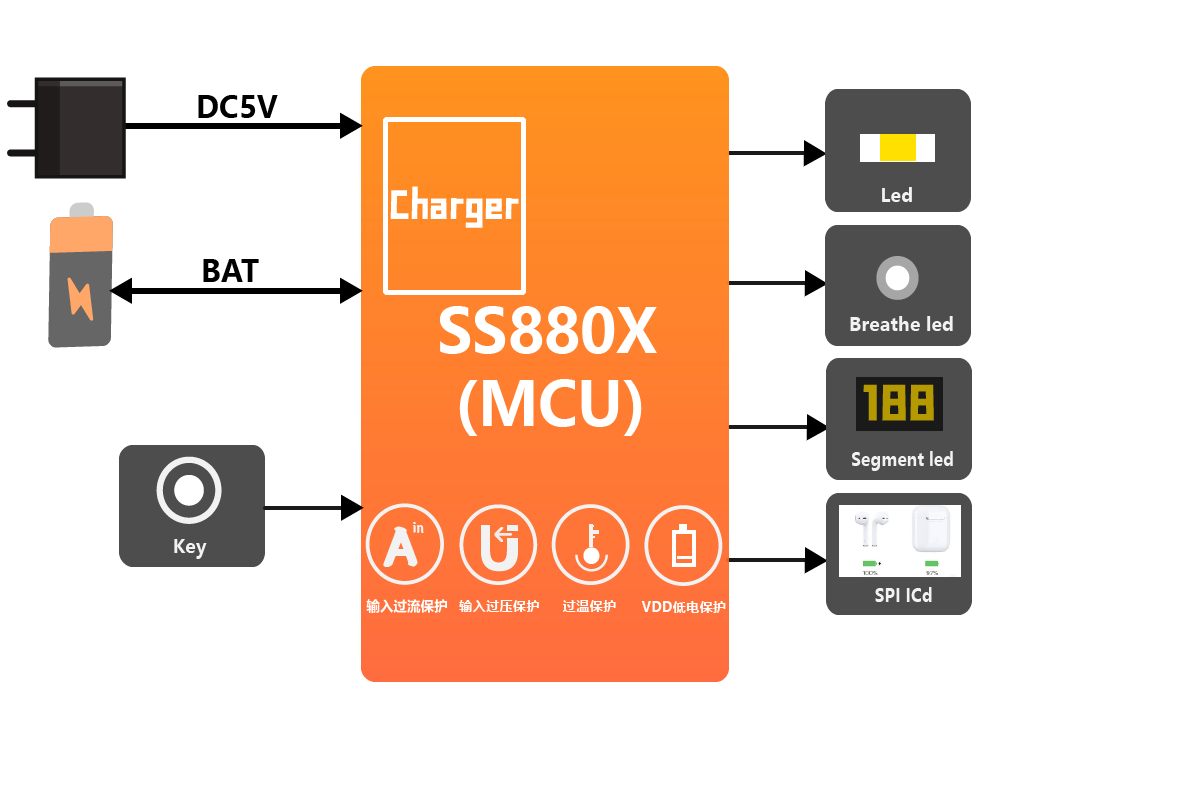

SS880X is a microcomputer with integrated rich power management functions, which is mainly used in portable personal appliances that need to be charged, such as Bluetooth earphone charge cases, LED lights, handheld atomizers, EC, aroma diffusers, fragrant smoked lights, electronic toys and so on.
Feature
◼ 8-bit enhanced MCU，12KB OTP，192B RAM
◼ Battery or 5V adapter power supply
◼ VIN pin supports maximum 14V withstand voltage（Higher voltage version supports maximum 28V）
◼ Integrated overvoltage, overcurrent, VDD low power, system overtemperature protection
◼ Ultra-low power consumption with as low as 3μA in SLEEP mode and 30μA in STOP mode
◼ Built-in linear charger management unit, charge voltage, and charge current can be finely adjusted
◼ Integrated 12-bit, 8-channel differential ADC, 2 channels support x36 gain, can be used in current and micro voltage measurement scenarios
◼ It can output 6 PWMs at the same time, of which 4 support high-precision adjustment of duty cycle, support multiple outputs bound together to improve drive capability, support Dead Zone control, and support hardware PWM protection
Documents
| 标题 | 发布日期 | 尺寸 | 操作 |
|---|---|---|---|
| SS880X Brief Datasheet | 2023-10-31 | 2.27 MB | |
| SS880X Brief Datasheet(EN) | 2023-10-31 | 2.2 MB |
Tools &Software
Sinh51_Keil工具| 标题 | 发布日期 | 尺寸 | 操作 |
|---|---|---|---|
| Sinh51_Keil_V4.2.4.msi | 2024-09-06 | 20.85 MB | |
| Changelog.txt | 2024-09-06 | 9.38 KB | |
| Sinh51 Keil User Guide | 2020-12-29 | 1.54 MB |
| 标题 | 发布日期 | 尺寸 | 操作 |
|---|---|---|---|
| Flashtool_Setup_V5.4.13.exe | 2024-09-29 | 84.95 MB | |
| SINH-FlashTools-User_Guide | 2024-09-10 | 2.31 MB | |
| Changelog.txt | 2024-09-29 | 6.06 KB |
Ordering Information
| Product Type | Package Type | Package Size |
|---|---|---|
| SS8801S08RC | SOP8 | 4.90 x 3.90 x 1.45 mm |
| SS8803S08RC | SOP8 | 4.90 x 3.90 x 1.45 mm |
| SS8808QN10RC | QFN16 | 3.00 x 3.00 x 0.75 mm |
| SS8809QN10RC | QFN16 | 3.00 x 3.00 x 0.75 mm |
| SS8809S10RC | SOP16 | 9.90 x 3.90 x 1.50 mm |
| SS8809HS10RC | SOP16 | 9.90 x 3.90 x 1.50 mm |
| SS880AP18RC | SSOP24 | 8.65 x 3.90 x 1.45 mm |
| SS880AHP18RC | SSOP24 | 8.65 x 3.90 x 1.45 mm |
| SS880MHP18RC | SSOP24 | 8.65 x 3.90 x 1.45 mm |
| SS880QTN18RC | QFN24 | 3.00 x 3.00 x 0.85 mm |
| SS880QHN18RC | QFN24 | 4.00 x 4.00 x 0.90 mm |
