SS88DX
Overview

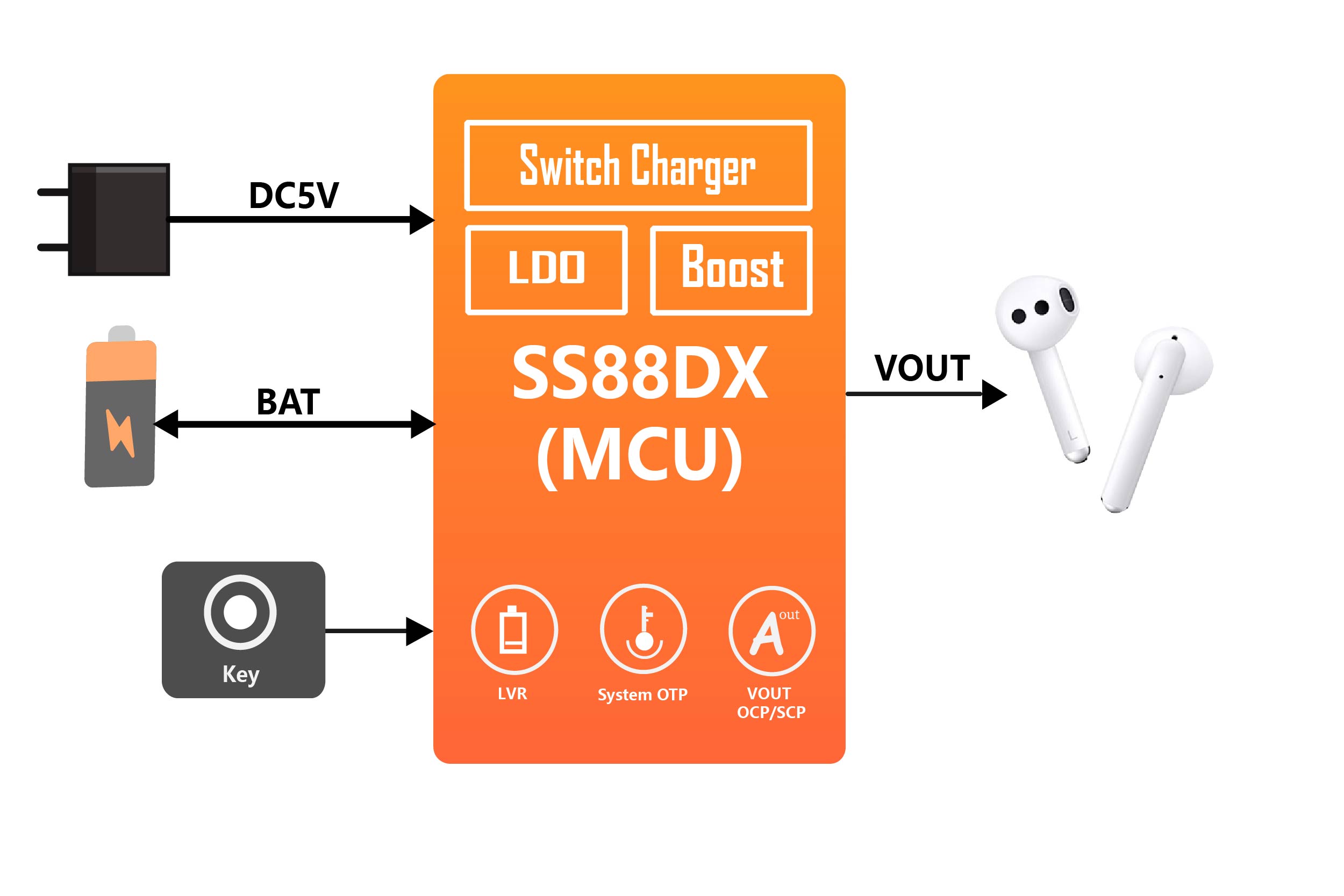

SS88DX is a low-power microcontroller developed by SinhMicro, which integrates 1.2A switch charger, 0.6A boost output, and power management unit.
Feature
◼ 8-bit enhanced MCU，8KB MTP，256B RAM
◼ Support adapter or battery power supply
◼ Integrated VDD low power, system overtemperature protection
◼ Ultra low power dissipation, sleep mode is 2μA
◼ Integrated 1.2A synchronous high-efficiency switch charger, 3.2-5.5V wide voltage input, finely adjustable charge voltage and charge current
◼ Integrated 5V and 0.6A synchronous boost module, 4.0-5.1V wide voltage output, supports short circuit and overcurrent protection
◼ 1 SysTick，1 Always Timer，1 Watchdog Timer，2* 16-bit timers with 4-channel PWM
◼ Support 13 bidirectional I/O ports, allowing for use of multiplexed digital and analog functions
◼ 2* UART support half-duplex communication
◼ Integrated 12-bit and10-channel differential ADC，1 NTC
Documents
| 标题 | 发布日期 | 尺寸 | 操作 |
|---|---|---|---|
| SS88DX-Datasheet_Brief(CN) | 2025-01-02 | 7.1 MB |
Tools & Software
Sinh51_Keil工具| 标题 | 发布日期 | 尺寸 | 操作 |
|---|---|---|---|
| Sinh51_Keil_V4.2.4.msi | 2024-09-06 | 20.85 MB | |
| Changelog.txt | 2024-09-06 | 9.38 KB | |
| Sinh51 Keil User Guide | 2020-12-29 | 1.54 MB |
| 标题 | 发布日期 | 尺寸 | 操作 |
|---|---|---|---|
| Flashtool_Setup_V5.4.14.exe | 2025-01-02 | 84.96 MB | |
| SINH-FlashTools-User_Guide | 2024-09-10 | 2.31 MB | |
| Changelog.txt | 2025-01-02 | 6.27 KB |
Ordering Information
| Product Type | Package Type | Package Size |
|---|---|---|
| SS88D9HN3F8 | QFN24 | 3.00×3.00×0.85 mm |
| SS88D8HENZF8 | QFN20 | 3.00×3.00×0.85 mm |
| SS88D8HNZF8 | QFN20 | 3.00×3.00×0.85 mm |
| SS88D6HN1F8 | QFN16 | 3.00×3.00×0.85 mm |
