SS882X
Overview

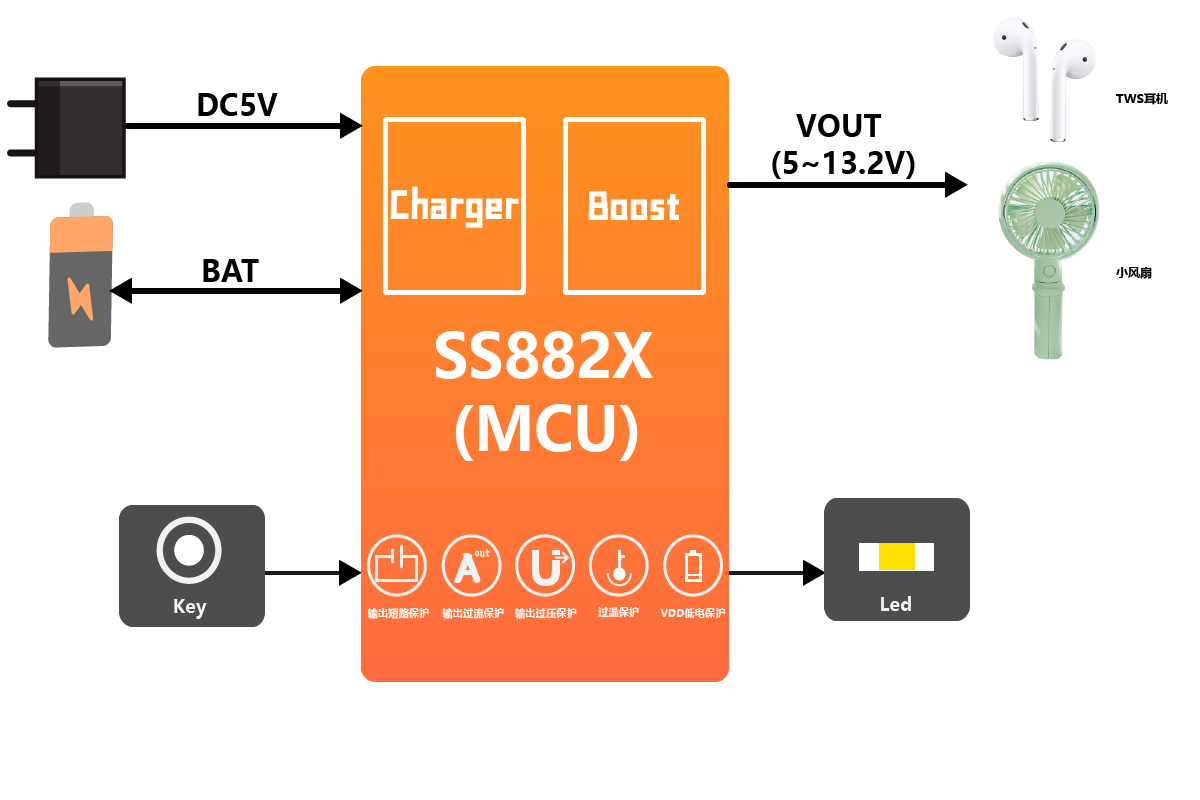

SS882X is a microcontroller with high withstand voltage linear charger and asynchronous boost function, which is mainly used in electronic devices that need to be charged, such as small fans (support 5V, 7V, 9V, 12V, and other motors), TWS charge cabin, 2 or 3 lithium batteries charge, 2 or 3 lithium batteries power supply equipment, and other extended applications with batteries that need to be charged.
Feature
◼ 8-bit enhanced MCU，1KB OTP，64B RAM
◼ Battery or 5V adapter power supply
◼ Built-in linear charger management unit, charge voltage, and charge current can be finely adjusted
◼ Built-in asynchronous boost, maximum support 13.2V boost output
◼ Integrated LED &KEY control unit, through 3 pins, can control 6 LEDs at the same time and 3 buttons scan detection
◼ Integrated overvoltage, overcurrent, short circuit, VDD low power, system overtemperature protection
◼ Ultra-low power consumption with as low as 3μA in SLEEP mode and 20μA in STOP mode
Documents
| 标题 | 发布日期 | 尺寸 | 操作 |
|---|---|---|---|
| SS882X Brief Datasheet | 2023-04-21 | 1.06 MB | |
| SS882X Brief Datasheet(EN) | 2023-04-20 | 913.58 KB |
Tools & Software
Sinh51_Keil工具| 标题 | 发布日期 | 尺寸 | 操作 |
|---|---|---|---|
| Sinh51_Keil_V4.2.4.msi | 2024-09-06 | 20.85 MB | |
| Changelog.txt | 2024-09-06 | 9.38 KB | |
| Sinh51 Keil User Guide | 2020-12-29 | 1.54 MB |
| 标题 | 发布日期 | 尺寸 | 操作 |
|---|---|---|---|
| Flashtool_Setup_V5.4.13.exe | 2024-09-29 | 84.95 MB | |
| SINH-FlashTools-User_Guide | 2024-09-10 | 2.31 MB | |
| Changelog.txt | 2024-09-29 | 6.06 KB |
Ordering Information
| Product Type | Package Type | Package Size |
|---|---|---|
| SS8821S08R1 | eSOP8 | 4.90 x 3.90 x 1.45mm |
| SS8823S08R1 | eSOP8 | 4.90 x 3.90 x 1.45mm |
| SS8829S10R1 | eSOP16 | 9.90 x 3.90 x 1.50mm |
