SS883X (Discontinued)
Overview

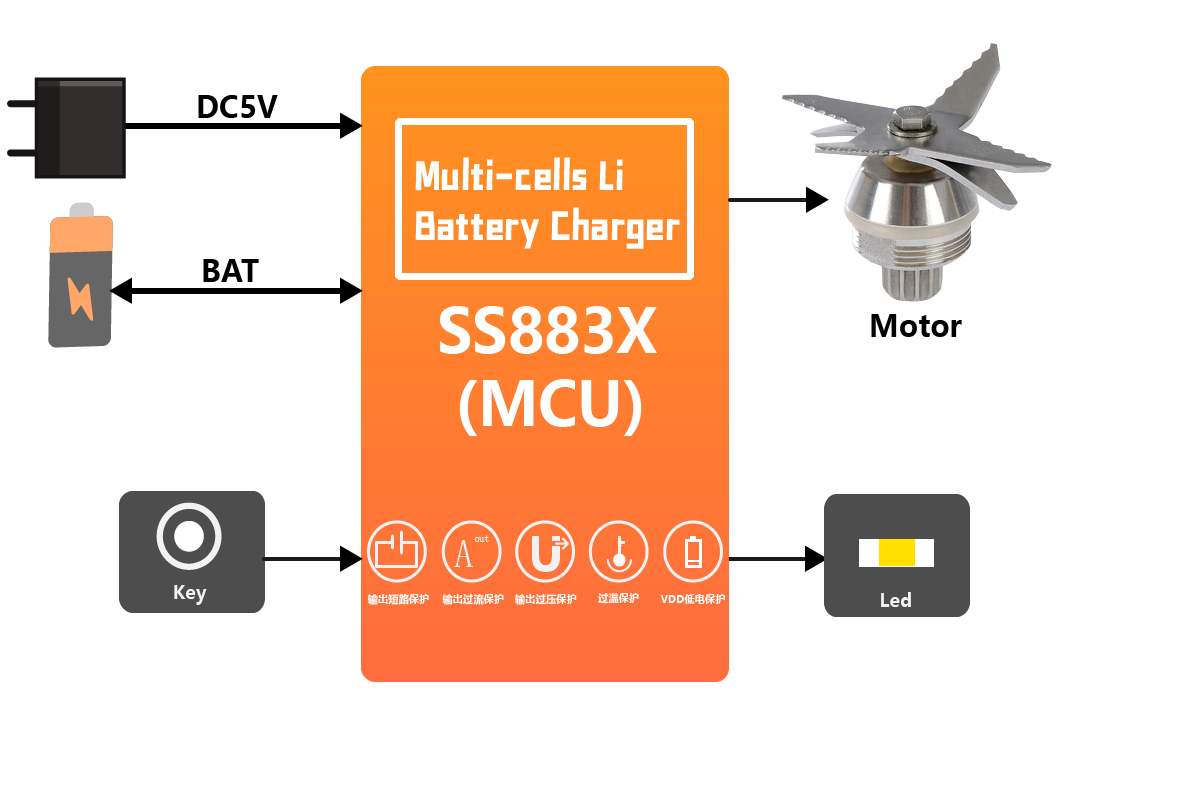

SS883X is a high-withstand-voltage MCU that supports multi-cell lithium battery charge, mainly used in electronic devices that need to be charged, such as juice machines, power tools, 2 or 3 lithium batteries charge or power supply equipment, and other extended applications with multi-cell lithium batteries that need to be charged.
Feature
◼ 8-bit enhanced MCU，1KB OTP，64B RAM
◼ Battery or 5V adapter power supply
◼ Built-in linear charger management unit, charge voltage, and charge current can be finely adjusted
◼ Integrated LED &KEY control unit, through 3 pins, can control 6 LEDs at the same time and 3 buttons scan detection
◼ Integrated output overvoltage, overcurrent, short circuit, VDD low power, system overtemperature protection
◼ Ultra-low power consumption with as low as 3μA in SLEEP mode and 20μA in STOP mode
Documents
| 标题 | 发布日期 | 尺寸 | 操作 |
|---|---|---|---|
| SS883X Brief Datasheet | 2020-11-19 | 1.26 MB |
Tools & Software
Sinh51_Keil工具| 标题 | 发布日期 | 尺寸 | 操作 |
|---|---|---|---|
| Sinh51_Keil_V4.2.4.msi | 2024-09-06 | 20.85 MB | |
| Changelog.txt | 2024-09-06 | 9.38 KB | |
| Sinh51 Keil User Guide | 2020-12-29 | 1.54 MB |
| 标题 | 发布日期 | 尺寸 | 操作 |
|---|---|---|---|
| Flashtool_Setup_V5.4.13.exe | 2024-09-29 | 84.95 MB | |
| SINH-FlashTools-User_Guide | 2024-09-10 | 2.31 MB | |
| Changelog.txt | 2024-09-29 | 6.06 KB |
Ordering Information
| Product Type | Package Type | Package Size |
|---|---|---|
| SS8836 | ESOP16 | 9.9x3.9x1.5mm |
