SS20C11X
Overview
The SS20C11X is an energy-efficient RISC-V architecture-based MCU series, delivering high reliability and large memory capacity as an entry-level RISC-V solution. It achieves optimal balance between computational performance and low power consumption. Operating at 2.1V-5.5V supply voltage, the CPU supports 32KHz-48MHz frequency across -40℃ to 105℃. The design requires external Flash (up to 2GB supported) while integrating 9KB SRAM.

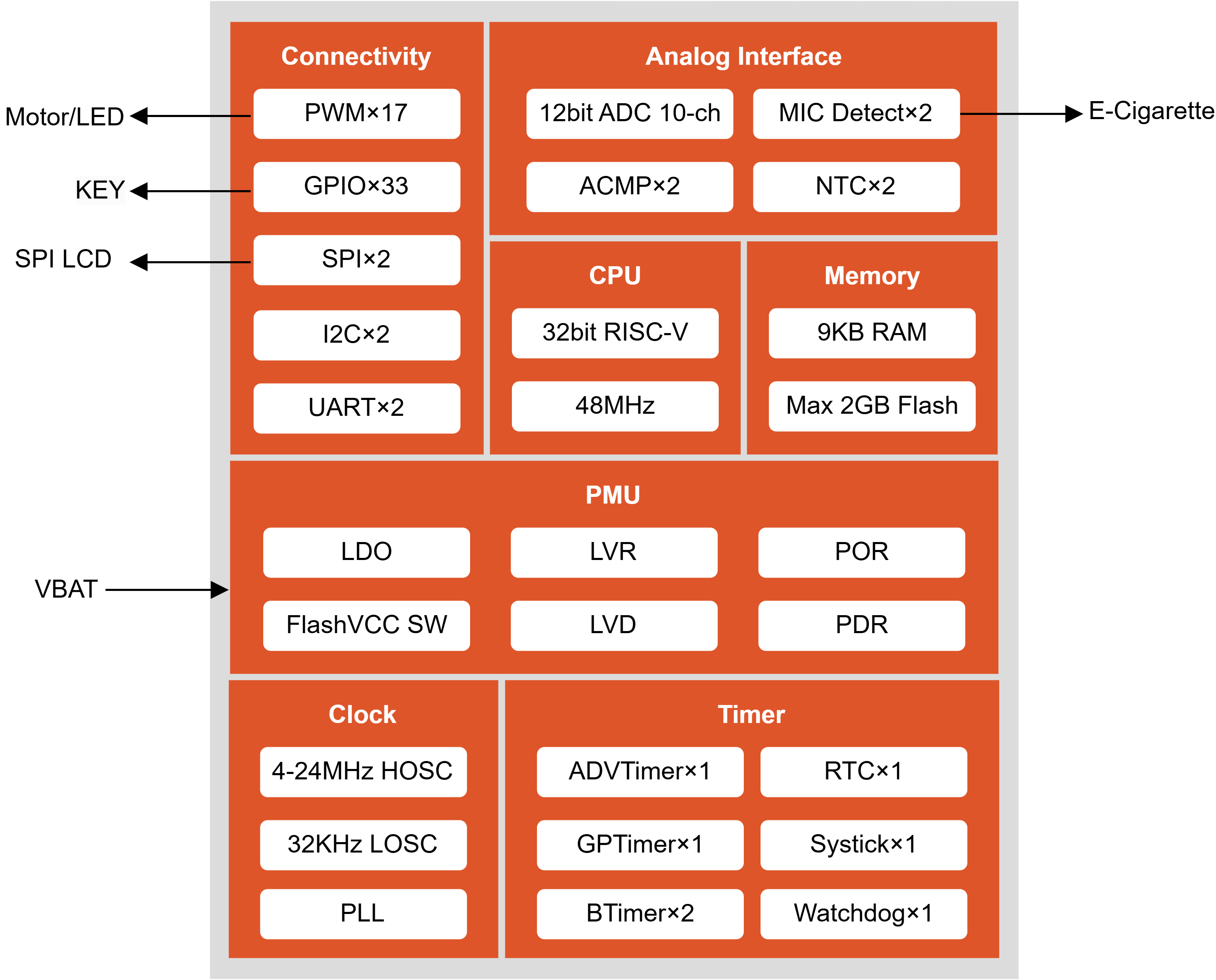

Features
◼ 32-bit RISC-V core MCU with maximum 48MHz main frequency, supporting 9KB RAM and external Flash up to 2GB
◼ Supports power supply from BAT or VCC individually or simultaneously
◼ Two 16-bit basic timers (BTIMER0 supports 2-channel complementary symmetric PWM output with brake function and dead-time insertion)
◼ One 16-bit general-purpose timer supports 4-channel input capture/output compare, features quadrature encoder and Hall sensor interfaces, and provides 18-channel PWM output
◼ One 16-bit advanced timer supporting 3-channel complementary PWM with dead-time, combined/shifted modes, brake function with cycle-by-cycle protection, and synchronization with two analog comparators
◼ One LCD/OLED display controller and one CRC module
◼ Two UART interfaces, two I2C interfaces, and two SPI interfaces
◼ Supports up to 33 bidirectional I/O ports with independently configurable multi-level source/sink current and high-current drive capability
◼ 12-bit 10-channel ADC, two general-purpose analog comparators (ACMP), and two NTCs
Documents
| 标题 | 发布日期 | 尺寸 | 操作 |
|---|---|---|---|
| SS20C11X-Datasheet_Brief(CN) | 2025-06-27 | 540.71 KB |
Tools & Software
SandIDE集成开发环境(点击跳转至软件页面)| 标题 | 发布日期 | 尺寸 | 操作 |
|---|---|---|---|
| SINH-SANDIDE-User_Guide-V1.1-20250325.pdf | 2025-04-18 | 3.34 MB |
| 标题 | 发布日期 | 尺寸 | 操作 |
|---|---|---|---|
| Flashtool_Setup_V5.4.16.exe | 2025-06-04 | 86.49 MB | |
| SINH-FlashTools-User_Guide | 2025-04-14 | 1.13 MB | |
| Changelog.txt | 2025-06-04 | 6.54 KB |
RSIC-V GCC交叉编译工具
| 标题 | 发布日期 | 尺寸 | 操作 |
|---|---|---|---|
| riscv32-sinh-elf-windows-x64-v1.0.1.zip | 2025-04-18 | 186.53 MB |
Ordering Information
| Product Type | Package Type | Package Size | Packaging Method | Pcs/Reel |
|---|---|---|---|---|
| SS20C117KN5S0 | QFN40 | 5.00×5.00×0.85mm | 编带 | 4000 |
