SS803EDX
Overview

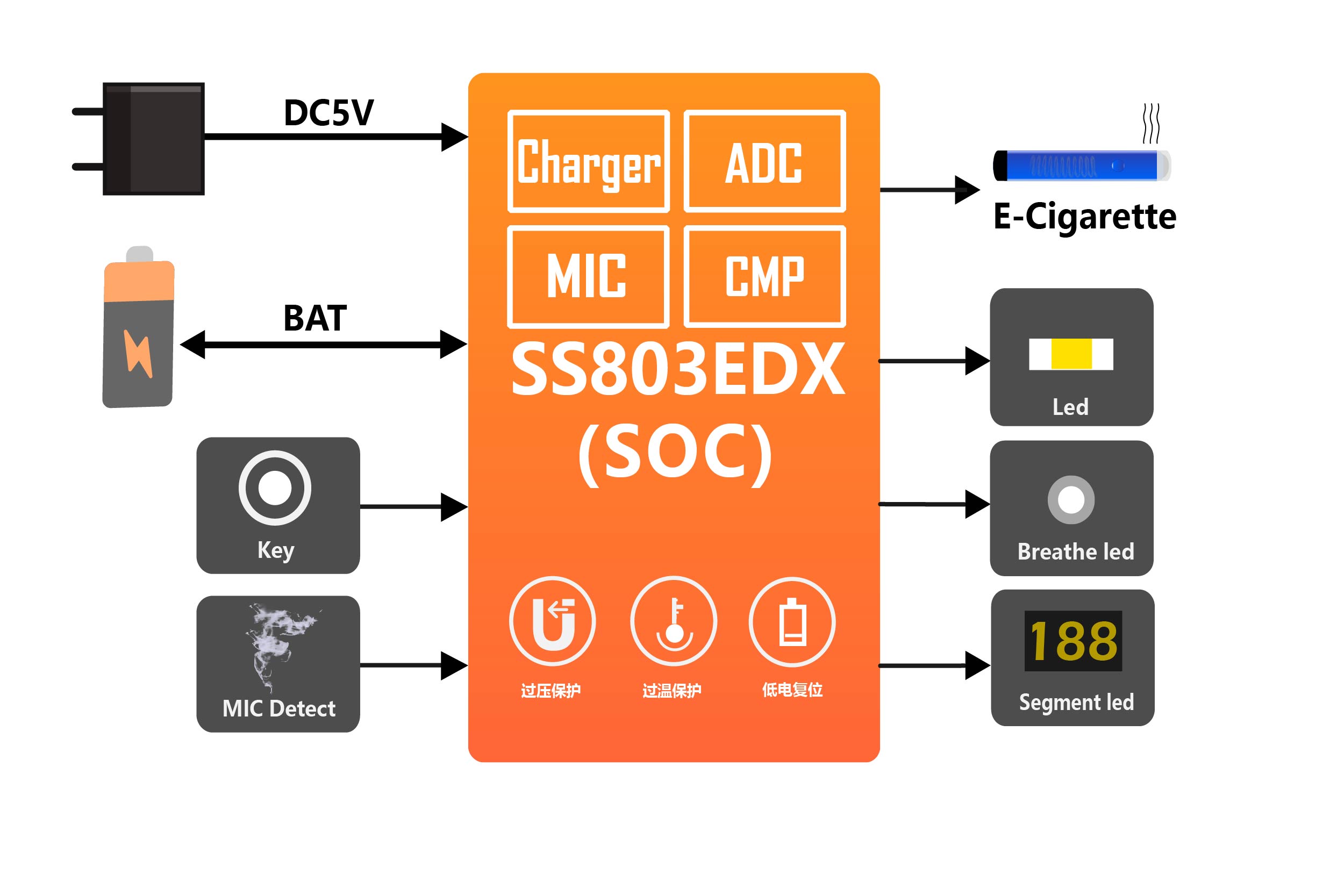

SS803EDX is a special MCU development by Sinhmicro for electronic cigarettes that integrates MIC detection, heating wire resistance detection, and short-circuit protection.
Features
◼ Enhanced 8-bit MCU with 8/12KB Code Flash, 128B EEPROM, and 192B Data RAM
◼ Supports single/dual power supply from adapter and/or battery
◼ Built-in 2 adjustable-step LDOs (VINLDO & BATLDO)
◼ Integrated protection for undervoltage, overtemperature, etc.
◼ Ultra-low power: 2μA in sleep mode
◼ Linear charger with 1A max charging current
◼ Supports 2 digital + 1 analog comparator simultaneously
◼ 11-channel 12-bit ADC + 1 adjustable NTC
◼ 2 software-controlled NMOS with PWM synchronization
◼ Three 16-bit timers (7 PWM outputs), linkable to Charger/NMOS
◼ E-cigarette mic detection: wake-on-inhale/exhale via capacitance change
◼ 22 bidirectional I/Os with comparator-triggered protection levels
◼ Single-pin half-duplex UART interface
Documents
| 标题 | 发布日期 | 尺寸 | 操作 |
|---|---|---|---|
| SS803EDX-Datasheet_Brief(EN) | 2025-06-25 | 1.89 MB |
Tools & Software
Flash_tools工具| 标题 | 发布日期 | 尺寸 | 操作 |
|---|---|---|---|
| Flashtool_Setup_V5.4.16.exe | 2025-06-04 | 86.49 MB | |
| SINH-FlashTools-User_Guide | 2025-04-14 | 1.13 MB | |
| Changelog.txt | 2025-06-04 | 6.54 KB |
| 标题 | 发布日期 | 尺寸 | 操作 |
|---|---|---|---|
| Sinh51_Keil_V4.2.4.msi | 2024-09-06 | 20.85 MB | |
| Changelog.txt | 2024-09-06 | 9.38 KB | |
| Sinh51 Keil User Guide | 2020-12-29 | 1.54 MB |
Ordering Information
| Product Type | Package Type | Package Size |
|---|---|---|
| SS803EDKN1FC | QFN16 | 3.00mm×3.00mm×0.75mm |
| SS803EDLKN3FC | QFN24 | 3.00mm×3.00mm×0.85mm |
| SS803EDMKNPFC | QFN28 | 4.00mm×4.00mm×0.75mm |
